ASUS RAID Setup: A Complete Guide

While hardware raid is often the best choice, it’s costly. For ASUS motherboard users , ‘Fake RAID‘, is a suitable alternative

You can make use of this technology from the UEFI/BIOS utility but its configuration slightly varies on different ASUS models. This involves enabling the Intel Rapid Storage Technology/AMD RAIDXpert2, configuring different SATA/NVMe options, and, finally, creating a RAID volume.

BIOS RAID setup is definitely a bit tricky, especially when it comes to configuring multiple NVMe/PCIe SSDs. Even when our TNT hardware team created a RAID set using HYPER M.2 card, we had to manage the PCIe Bifurcation Configuration first for the installed SSDs to be detected.

However, not all ASUS systems support splitting the PCIex16 slot, and you might just be limited to the onboard M.2 or it only supports SATA RAID configuration. Keeping all these things in mind, I’ve narrowed down the general steps for both Intel and AMD motherboards.

Getting Started

Whether you’re trying to gain performance benefits or increase fault tolerance, it’s essential to consider a few things beforehand.

Does your ASUS motherboard embed a built-in RAID controller and supports the level you’re seeking for? Are you using the appropriate number of storage drives alongside matching form factor and vendor? Let’s break down the basics of what you should do before you begin the actual process.

Check Motherboard Compatibility

While some ASUS models support multiple RAID levels, others might not be compatible at all. Likewise, some boards only allow you to set up SATA RAID, restricting the utilization of PCIe RAID configuration.

That’s exactly what happened when our TNT Hardware team tried setting up a PCIe RAID array (with four different WD SN810 256G NVMe SSDs in ASUS HYPER M.2 X16 CARD V2) on our PRIME B660M-K D4. Only when we were at the final steps, we came to know that this model doesn’t support PCIe RAID.

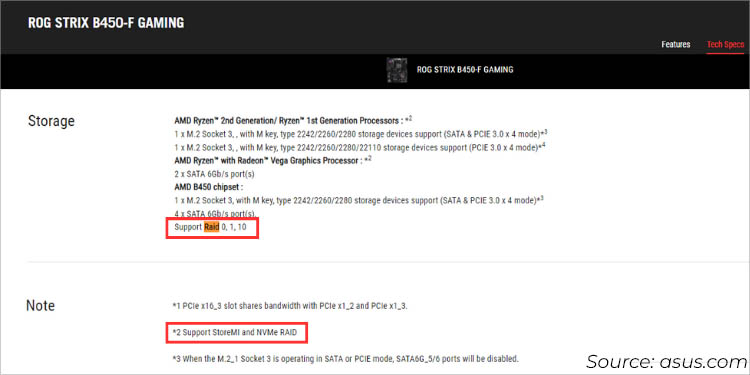

Checking ROG STRIX B450-F GAMING Tech Specifications for RAID Support

The quickest way to verify this is from the ASUS official website and inspecting the Tech Specifications page of your model. You may look up your user manual as well.

You should find something related to levels or processor technologies (RAIDXpert2/Intel Rapid Storage), along with whether it supports NVMe/PCIe RAID.

Use Compatible Storage Drives

The next thing to keep in mind is whether your HDD or SSD is of identical form factors. Even though you’ll find the option to choose ‘Both’ during the Media Type selection, it’s best to use those having the same interface for compatibility reasons.

Moreover, I recommend using the same model for all your storage drives. Yes, even their disk size and speed matters! If you create a RAID array with different capacity drives, you’ll be limited to the one that has the least specifications.

However, if you’re planning to experiment with older drives (whose size, interface, and manufacturer differ) to achieve better performance, it’s worth a try! When we mixed two different SSDs for the RAID 1 setup (Samsung Evo 500GB and WD SN810 256G), we were limited to the capacity of the second drive.

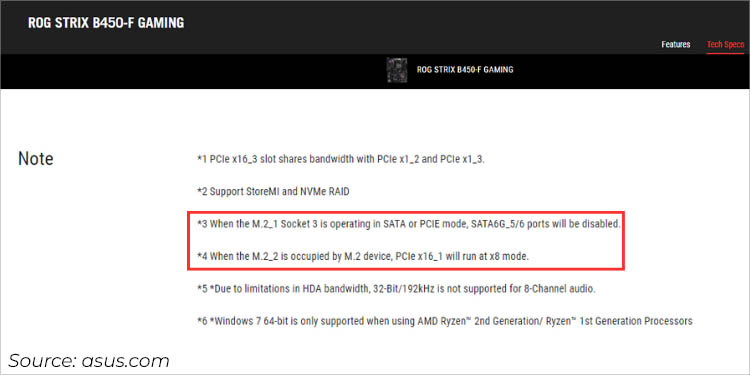

Checking for Additional Notes when multiple storage drives are connected

In addition to that, make sure you’re using the correct SATA/M.2 slots when connecting multiple storage drives. For instance, some SATA ports get disabled if you have already installed an NVMe SSD as your primary storage component. Check your motherboard’s support page to find out more about this.

Note: When configuring SATA RAID, all the other SATA ports will also run in RAID mode.

Make Drivers Ready

One thing that you’re probably going to stumble upon is finding the appropriate RAID drivers! It happened to us and in this section, I’ll make sure you don’t make the same mistakes as we did.

Starting off, RAID drivers are available on ASUS and your processor’s (Intel or AMD) support pages. While both are supposed to be compatible, they might not be the same for all systems.

As far as we have tested here at our TechNewsToday Office, the drivers from your ASUS model’s support page should be good enough:

  1. Search for your model and switch to the Support section.
  2. Select Driver & Utility > Driver & Tools.
  3. Select your OS and scroll down to find SATA.
  4. Download the first item you see.
  5. Extract the files and copy them to a USB flash drive.

In case the above steps didn’t work, you can navigate to the official support page of Intel or AMD. Here are the basic guidelines:

  • Team Blue should ensure their drivers are compatible with the processor’s generation. Just navigate to “Intel Rapid Storage Technology (Intel RST) User Interface and Driver” on your web browser and download the .exe file. Use the ./SetupRST.exe -v EXTRACTDRIVERS=SetupRST_extracted command in Windows Powershell to extract all the files inside it.
  • Meanwhile, it’s much easier for Team Red. Just submit your chipset on the AMD Drivers & Support page and download the AMD RAID Driver (SATA, NVMe RAID) based on your operating system.

Disable CSM

Now that you have the necessary drivers ready, it’s time to enter ASUS BIOS using Del or F2 key. Once you’re in the interface, you need to disable CSM as RAID configuration is only possible in UEFI mode.

Disabling CSM in ASUS ROG BIOS

If you’re in the EZ mode, quickly switch to Advanced using F7. Look for Compatibility Support Module (CSM) in the Boot menu. For a detailed overview, here’s my complete guide on tweaking the CSM setting on ASUS mobos.

Intel RAID Setup (Rapid Storage Technology)

Intel users should find the Rapid Storage Technology option within your UEFI firmware. This offers four different levels–RAID 0, RAID 1, RAID 5, and RAID 10 with the right number of storage drives used. Here’s what ASUS recommends:

  • RAID 0: At least 2 identical HDDs/SSDs
  • RAID 1: 2 drives (the second one should be of the same capacity or higher)
  • RAID 5: At least 3 identical storage drives
  • RAID 10: At least 4 disks (or 3 new drives with a pre-existing one)

In this guide, I will only walk you through the common steps for setting up software-level RAID using ASUS BIOS. The exact steps may vary based on your motherboard’s chipset but the general idea is going to be the same.

While you may purchase a separate hardware RAID controller as well, the following emphasizes a cost-effective solution to gain better performance or fault tolerance.

Enable Intel Rapid Storage Technology

The first step involves enabling the Volume Management Device (VMD) for PCIe Storage, SATA Controller, or both. While you can manually navigate to the dedicated section from the Advanced mode, it’s even much easier to do it from EZ.

Look for Intel Rapid Storage Technology, right underneath the Storage Information section. While you’re at it, note that the connected devices aren’t shown as RAID drives yet.

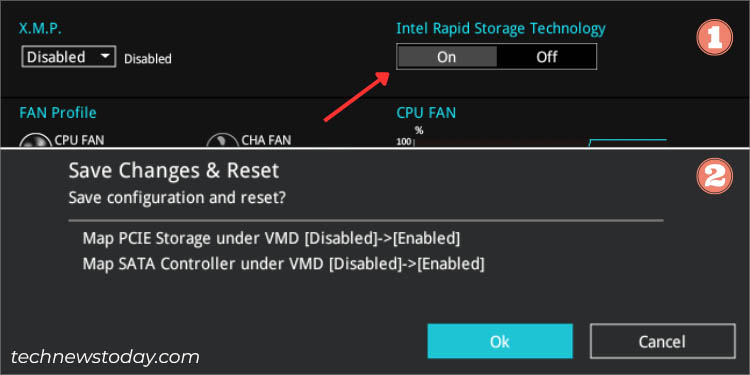

Enabling Intel Rapid Storage Technology in ASUS PRIME BIOS

Quickly press F10 to save and exit from BIOS. A dialogue box should appear where you should notice that both the MAP PCIe Storage under VMD and Map SATA controller under VMD gets enabled.

While enabling Intel RST should be enough (as it was in my case with PRIME B660M-K D4), you might require setting the SATA mode in other models. In that scenario, switch to Advanced mode and go to Advanced > PCH Storage Configuration > SATA Mode Selection. Here, pick Intel RST Premium With Intel Optane System Acceleration (RAID).

Configure Additional Settings for M.2 or Hyper M.2 Cards

Note: Skip this section if you’re creating a RAID set using SATA drives.

If you’re using M.2 NVMe SSDs it’s essential that you turn on RAID configuration for all of them. All you have to do is get to the PCH Storage Configuration and set M.2 NVMe Storage RAID Support to Enabled.

However, if you’re using the ASUS Hyper M.2 card or any other PCIe expansion card, make sure all the PCIe slots are set to Hyper M.2 X16 or PCIE X4 SSD card respectively. That’s exactly what we had to do on our ROG STRIX X470-F GAMING motherboard to make it work.

Additionally, in some systems, you need to configure the PCIe Bandwidth Bifurcation Configuration to RAID mode (note all boards might not support it). Without doing so, the SSDs installed in the Hyper card won’t be detected. Save the changes before proceeding forward.

Create RAID Volume

Important: Setting up RAID will delete all your files (including Windows). So, make sure you back up your important data before moving ahead.

After exiting BIOS mode, reenter the interface using the dedicated BIOS menu key again. Then, follow the below instructions to create a RAID set (for both NVMe and SATA SSDs):

  1. After enabling Intel Rapid Storage Technology, you should find the related option (at the very end) in the Advanced tab.
  2. Select the option and choose Create RAID Volume.
  3. Start by entering the name for your RAID array.
  4. Then, pick a supported RAID level. For demonstration, I’ve picked RAID 0 here.
  5. Under Select Disks, start expanding each SATA drives you wish to keep in the RAID array. Choosing ‘X’ will select it.
  6. Then, pick an appropriate strip size. Depending on the RAID level, here are recommended sizes:
    • RAID 0: 128 KB
    • RAID 1: 128 KB – 256 KB
    • RAID 10: 64 KB
    • RAID 5: 64 KB
  7. By default, the highest possible capacity is set. You may change this to your desired value if you wish to lower it down. I preferred to let it set to the default value and recommend the same.
  8. Hit the Create Volume option.
  9. Now, you should see your RAID array under the RAID Volumes section in the Intel Rapid Storage Technology section.

Note: If your ASUS motherboard supports Intel VROC (Virtual RAID on CPU), you need to navigate to the dedicated section instead of Intel Rapid Storage Technology. But do note that for RAID 1, 5, and 10, you need to get a KEY module in order to enable the RAID license. Also, such a feature is only supported if you’re using a compatible processor (Intel Core X-series is required) with Intel SSDs.

Loading Driver During Windows Installation

After creating a SATA or NVMe RAID set, you may exit BIOS mode from your ASUS PC. Insert a bootable flash drive and proceed to install Windows. However, you’re likely not going to get any of the HDDs/SSDs during the process due to missing drivers:

  1. After choosing to custom install the operating system, click on the Load driver option.
  2. You should now get a ‘Load driver’ prompt. Ensure you have inserted the flash drive containing the SATA/NVMe RAID drivers (prepared earlier).
  3. Press the Browse button.
  4. In the new dialogue box, navigate to your flash drive and look for the Driver folder inside the DRV_RST_Intel_SZ_TSD_[YourOS_Version] directory (default name). This is the case if you had downloaded the drivers from your motherboard’s official support page. This step might vary if you had done it from Intel’s driver section.
  5. Now, a list of drivers should show up. Select the first one and hit Next.
  6. You should now get your RAID array. Select it and proceed with the Windows installation.

Final Verification

After Windows is installed, you can now log in and quickly verify the RAID array from Windows Task Manager > Performance > Disk. You’ll notice that all your HDDs/SSDs will be working as a single disk.

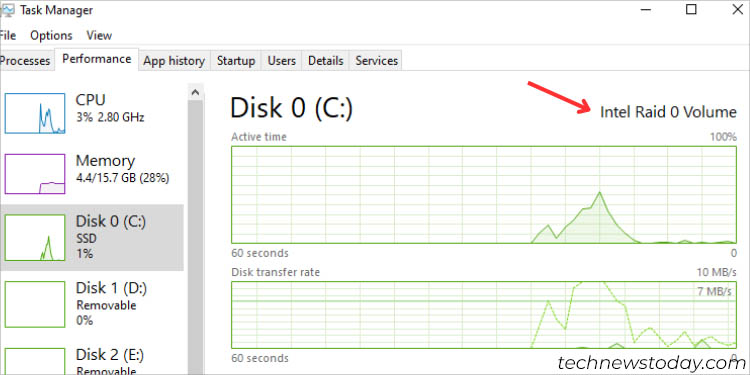

Intel RAID Completion Check in Windows Task Manager

In case you hadn’t installed Windows, you may open the Disk Management utility and complete the disk initialization and partition the drive as required.

It’s even possible to set up RAID from Windows Disk Management. You need to set New Striped Volume Wizard (for RAID 0) or New Mirrored Volume (for RAID 1). While this does sound like a quick way to gain redundancy/fault tolerance, it happens to be a different discussion altogether.

Also, I like to run a stress test on my RAID arrays each time after setting them up. While I prefer using CrystalDiskMark, you may use your preferred tools like HD Tune, UserBenchMark, etc.

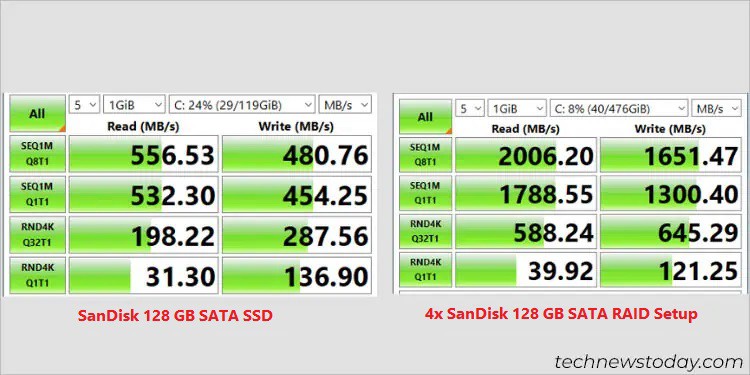

Stress Testing Single SATA SSD vs RAID-Configured 4 SATA SSDs

When our TNT Hardware Department tested four same models of SanDisk 128 GB SATA SSDs on the PRIME B660M-K D4 motherboard, we were able to achieve four times the performance of a single drive when setting up RAID 0. The above figure should speak for itself.

Other ways:

  • You can download Intel Rapid Storage Technology Driver Installation Software and use the Create RAID Volume section here to set up a RAID level of your choice.
  • Also, you may use the ROM utility for setting up RAID without having to enter the BIOS utility or disabling CSM. During the POST, press Ctrl + I and use your keyboard keys to navigate to the respective sections to complete the volume creation.

AMD RAID Setup (RAIDXpert2 Configuration)

The RAIDXpert2 technology allows users to create multiple array levels using identical disk drives. Depending on your system’s licensing, ASUS AMD boards support the following RAIDs and can be configured from BIOS as well as the Windows application (download AMD RAID Installer software from the official support page).

  • Volume: Doesn’t provide redundancy and is only meant for scavenging space (linking different storages together regardless of their disk spaces)
  • RAIDABLE: Allows you to add more storage spaces (even after system installation) and provides redundancy
  • RAID 0: For data striping (at least two identical HDDs/SSDs required)
  • RAID 1: For data mirroring (two drives with the second one being the same size or greater required)
  • RAID 10: Combination of RAID 0 and 1 (at least four drives required)

Switch SATA Mode to RAID

By default, the SATA mode on ASUS AMD motherboards is set to AHCI. So, before proceeding to create a RAID volume, ensure that you have configured this option correctly.

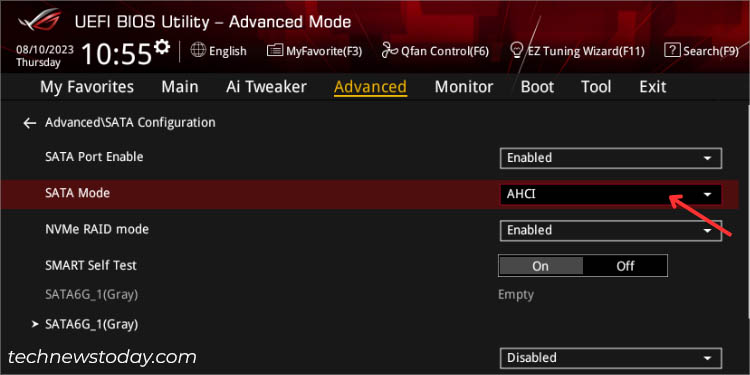

Expand the SATA Mode drop down and change AHCI to SATA

Once you’re in the ASUS BIOS, switch to Advanced mode and go to the Advanced tab. Here, look for SATA Mode and configure this option to RAID.

Additional Settings for M.2 and Hyper Cards

For users trying to set up NVMe RAID using onboard M.2 SSDs or through storage drives connected on Hyper cards (via PCIEX16 slot), make sure you have enabled the dedicated NVMe RAID mode option.

All you have to do is navigate to Advanced > SATA Configuration (in some, the related option might be included within the AMD PBS section). Look for NVMe RAID Mode, expand the drop-down, and select Enabled.

Likewise, Hyper x16 card users should set the respective PCIE slot to PCIe RAID mode. You should find this option under Advanced > Onboard Devices Configuration.

In case you do not find these options, look for PCIe Bandwidth Bifurcation Configuration and configure it to RAID mode. However, these settings might vary based on your ASUS motherboard chipsets.

In some systems, you might get an option to split x16 to x4x4x4x4 or x8x4x4. That’s exactly what your TNT team did to set up RAID on the ASRock motherboard. It might be the same on some ASUS models as well.

Create RAID Array

Once all the settings are configured, the RAIDXpert 2 Configuration option should appear under the Advanced menu. Get to this section and follow the below instructions to complete setting up RAID set on your ASUS AMD motherboard:

  1. Start by selecting a RAID level, as discussed earlier.
  2. Next, choose Select Physical Disks.
  3. Once you’re in the respective section, set the Select Media type to your current storage drive–HDD or SSD.
  4. Then, turn on all those drives that you wish to keep in the RAID array.
  5. Hit the Apply changes option and you should get back to the previous window.
  6. Now, configure all the remaining options:
    • Array Size: The filled one is the default value. Depending on your preference, you can try decreasing it.
    • Array Size Unit: By default, it’s set to MB. You may even change this to GB for your comfort.
    • Select CacheTagSize: Set this depending on the RAID level prescribed above. For server systems, I recommend setting a lower strip size, and for multimedia computers, it’s best to go for a higher value.
    • Read Cache Policy: Set your RAID array’s read cache policy (I prefer leaving it to Read Cache).
    • Write Cache Policy: Set your RAID array’s write cache policy (I prefer leaving it to Write back Cache).
  7. Finally, select Create Array to complete the RAID setup process.

Load Drivers During Windows Installation

Now, you may proceed with installing Windows. But as stated earlier, I am pretty much sure that you’re not going to find your drive in the ‘Where do you want to install Windows?’ screen. The steps to load drivers are almost similar to Intel with slight variations:

  1. Click on the Load driver option.
  2. Then, hit the Browse button and look for the folder that you had copied earlier.
  3. Whether you have downloaded the drivers from the official AMD of ASUS support page, you need to load these–rcbottom, rccfg, and rcraid
  4. In case any one of the drivers didn’t load (which happened to me when loading rccfg), uncheck the ‘Hide drivers that aren’t compatible with this computer’s hardware’ option.
  5. While the driver might show up and even get loaded during Windows installation, there’s a chance that you may encounter an error during the middle of the process. If that happens, I suggest downloading the drivers from another site.
    In my case, I tried with my ROG STRIX B450-F GAMING motherboard drivers from ASUS Download Center but since it didn’t help, I had to do it from AMD and fortunately enough, this worked like a charm.
  6. Once the drivers are loaded, you can now move ahead with the Windows installation process.

Additional Tip:

In some ROG and TUF BIOS, you should get the EZ Tuning Wizard utility, which can be provoked by pressing the F11 key.

In the dedicated window, switch to the RAID mode first, select the port (PCIE or SATA), configure your storage drives, choose the function (Easy Backup/Super Speed), and select the level (usually RAID 0 and RAID 1 are supported). This should automatically create the RAID without further hassle.

How to Delete RAID Array?

If you want to split up the RAID array back to its original configuration, there’s no other option than deleting it. The process is tremendously simple and I’ll provide the necessary steps for both the Intel and AMD ASUS boards in this section.

Caution: Deleting the RAID array will remove all your files (including the OS). So, make sure you back up everything before proceeding to the below instructions.

On Intel Motherboards

  1. Get to Advanced > Intel Rapid Storage Technology.
  2. Here, select your RAID volume.
  3. From the Volume Actions section, hit the Delete option.
  4. On the confirmation page, press Yes and this should unlink all your storage drives.

On AMD Motherboards

  1. Navigate to RAIDXpert2 Configuration Utility and get to the Array Management section.
  2. Choose Delete Array.
  3. On the next page, ensure the desired array is toggled on.
  4. Then, click on Delete Array(s).
  5. Toggle on the Confirm option before pressing Yes.
